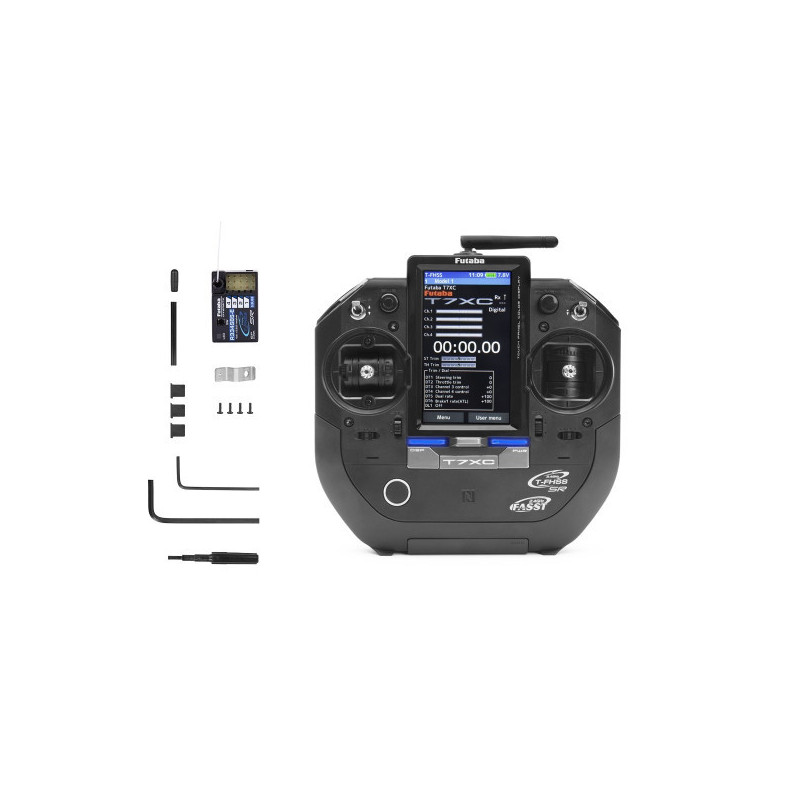

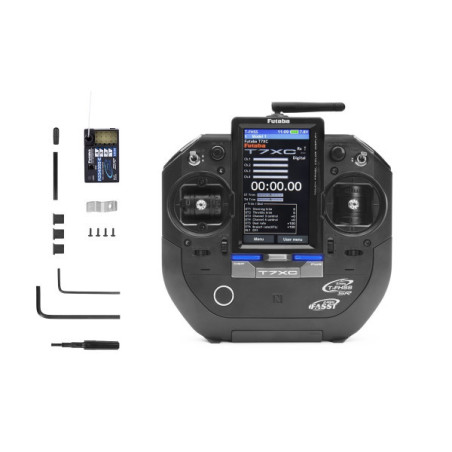

Futaba 7XC with receiver RX R334SBS

The T7XC was developed for car/boat modellers who want a premium stick style radio for land and water based modelling. The technology inside is largely based on the well known T7PX with some new features and this stylish new ergonomic case shape.

The case is made from high quality moulded plastic and finished in a stunning deep satin black, accented by chrome mouldings and switches. The huge 4.3" colour touch screen has a 'transflective' surface for great visibility indoors and out. The screen is easy to use and responds quickly to the touch. There is also a jog dial if you prefer to navigate that way.

Using Futaba's fastest technology 'T-FHSS SR' the response has a ultra-fast frame rate of 2.45 milliseconds! This new system brings in a locked in feel and response that racers and performance drivers will truly appreciate. The T7XC is also compatible with Futaba T-FHSS, S-FHSS and FASST so you can select the preferred transmission system for each car to suit your requirements and budget. With T-FHSS telemetry the data can be displayed on the screen or relayed by a synthesized voice using the in-built speakers or headphones (not included).

The T7XC has the ability to update its software using an SD card but it also has NFC (Near Field Communication) which allows you to update the radio from an android phone just by opening an APP and placing it next to it! Just another way that Futaba is at the forefront of technology to make your hobby easier.

Feature:

Display backlight brightness setting / dimming time setting / touch panel correction

Information language setting / version information

Sound setting (telemetry sound, alarm sound, operating sound)

Battery type setting / auto power off

Date and time setting / Displaying the time on the home screen or selecting the total timer

LED Setting

Steering wheel and throttle trigger calibration

Software update with NFC

Receiver update using Tx (R334SBS / R334SBS-E)

Model select

Model memory copy

Model memory name (set / modify)

Delete model data in SD card

Data reset (Model, Direct menu, All)

Receiver system / servo response selection / linking with T-FHSS SR & T-FHSS system receive / Telemetry ON / OFF

Servo view, displaying servo operation

Trigger neutral, brake and throttle servo rate adjustment

Channel Reverse

Sub trim, fine adjustment of the center position

End point adjustment

Fail-safe/Battery Fail-safe

Acceleration, changes the ''lag time'' of the throttle from the neutral position

Trim / Dial selection

Switch select, select which functions are operated

Condition, 2nd condition settings

Idle up at engine start

D/R, ATL, Steering angle adjustment while running / Brake side adjustment

Channel Limiter, a channel limiter function which limits maximum servo movement

Channel Setting, ability to assign steering or throttle motion to any channel

Curve (EXP), Steering curve adjustment / Throttle curve adjustment

Servo speed, steering servo delay / Throttle servo delay

Traction control, Pulse throttle operation to improve grip

A.B.S, pulse braking

Start throttle, preset at start function

Engine cut, engine cut off by switch

Steering mixing, Twin servo mixing of the steering

Brake mixing, front and rear independent brake control for 1/5GP car, etc.

Gyro mixing, The sensitivity of Futaba car rate gyros can be adjusted

4WS mixing

Dual ESC, front and rear ESC mixing

CPS mixing, for Futaba CPS-1 LED controller

Tank mixing, for use in RC military tanks

1-5 Programmable mixes

Tilt mixing, outboard engine tilt mixing

Telemetry data screen

Telemetry Sensor List

Telemetry sensors setting

Timers (up, down, lap, or lap navigation timers)

Lap timer data (lap time, average lap, best lap time) check

S.BUS servo Link software setting / SR mode setting

MC (ESC) Link (for MC851C/602C/402CR/950CR/940CR/960CR)

Roll out chart

Gear ratio calculation function

Home (change the function of the HOME button)

Specification:

T-FHSS SR/T-FHSS (Default) - R334SBS/ R334SBS-E

T-FHSS - R304SB/ R304SBE

S-FHSS - R2104GF/ R204GF-E/ R2008SB/ R2006GS

FASST - R614FS/ R614FF-E/ R604FS/ R604FS-E

Include:

Futaba 7XC Transmitter (1 pc)

Futaba R334SBS Receiver (2 pcs)

Life Battery (Installed in transmitter)

Miniature screwdriver

Receiver plugs (3 pcs)

Ratchet plate (1 pc)

Printed instruction manual
