Sensor kit for Health System – Advanced Sensor Monitoring Platform for Aircraft
€1,150.00
Tax excluded
Delivered within 7-10 days for orders within EU

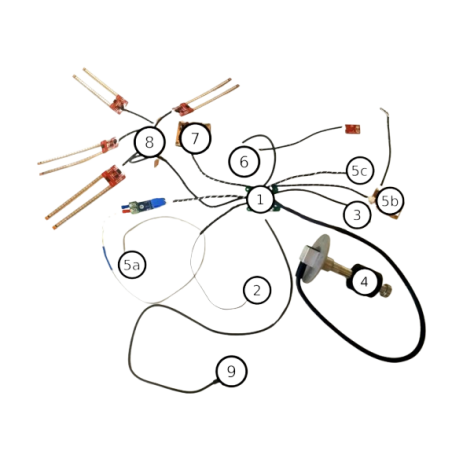

This sensor kit offers a complete solution for monitoring critical parameters in robotics and aerial systems. It includes sensors for flexion, optical RPM measurement, and both analog and PWM-based liquid level detection. A compact flow sensor handles fluid monitoring, while temperature is measured using infrared, thermocouple, and contact-based sensors. For electrical diagnostics, the kit features current and voltage sensing, supported by high-resolution analog-to-digital converters. All components are designed for seamless integration with microcontrollers and ROS environments, making the kit ideal for real-time system monitoring and advanced diagnostics.
Flex Glove Controller
The Qwiic Flex Glove Controller enables integration of flex sensors into wearable applications like gloves. Utilizing I²C communication via the Qwiic system, it simplifies the process of capturing finger movements to control lighting, sound, and other effects. An onboard ADS1015 ADC ensures precise analog-to-digital conversion, making it ideal for e-textile projects.
Optical RPM Sensor
This optical RPM sensor provides accurate rotational speed measurements.
Flow Sensor
This compact turbine flow sensor is designed for low-flow measurements ranging from 0.05 to 3.0 L/min. It features a Hall-effect sensor providing a pulse output proportional to flow rate, with approximately 2,500 pulses per liter. Suitable for water, diesel, heating oil, and other non-aggressive liquids, it operates within a temperature range of -20°C to +80°C.
MLX90614 Infrared Temperature Sensor
The GY-906 MLX90614 is a non-contact infrared temperature sensor that measures object temperatures from -70°C to +380°C with high accuracy. It communicates via I2C and is ideal for applications requiring remote temperature sensing, such as in robotics, automotive, and medical devices.
MCP3428 4-Channel 18-Bit ADC with I2C Interface
The MCP3428 is a 4-channel, 18-bit analog-to-digital converter that communicates over I2C. It offers programmable gain and sampling rates, making it suitable for precise analog signal measurements in various applications, including sensor data acquisition and instrumentation.
ADS1115 16-Bit ADC – 4 Channel with Programmable Gain Amplifier
The ADS1115 is a 16-bit analog-to-digital converter featuring four channels and a programmable gain amplifier. It communicates via I2C and is ideal for applications requiring high-resolution analog measurements, such as in data logging, portable instrumentation, and industrial process control.
ACS723 Current Sensor Breakout – 0 to 5A
The ACS723 current sensor breakout board measures AC and DC currents up to 5A with high accuracy. It provides an analog voltage output proportional to the current and is suitable for applications like power monitoring, overcurrent protection, and motor control.
ECMS Analog Fuel Level Sensor
The ECMS analog fuel level sensor provides continuous level measurement for fuel tanks. It outputs a voltage signal proportional to the fuel level, making it compatible with various monitoring systems. Its robust design ensures reliable operation in automotive and marine applications.
ECMS PWM Fuel Level Sensor
The ECMS PWM fuel level sensor offers precise fuel level measurement by outputting a pulse-width modulated signal corresponding to the fuel level. This digital output makes it suitable for integration with modern electronic monitoring systems in vehicles and boats.
Temperature Sensor
The LilyPad Temperature Sensor is designed for wearable electronics and e-textile projects. It uses a thermistor to measure ambient temperature and outputs an analog voltage. Its sewable design allows for easy integration into clothing and fabric-based projects.
